Thuis /Producten/batterijoverdrachtwagen/Steel Coils Factory Transfer Battery Powered Electric Trolley For Transport Trolley

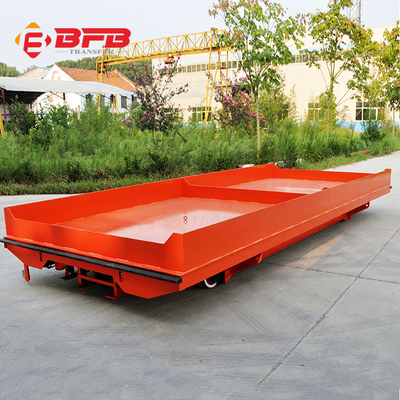

Steel Coils Factory Transfer Battery Powered Electric Trolley For Transport Trolley

1.0 Sets
MOQ
$5,500.00(1 - 4 Sets) $5,000.00(>=5 Sets)
Prijs
Steel Coils Factory Transfer Battery Powered Electric Trolley For Transport Trolley
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Warranty: 1 Year
Certificates: CE, ISO, SGS
Name: Battery powered electric transfer trolley for transportation cart
OEM: Accepted
Application: Steel Coils Factory,Steel mill, foundry plant
Export country: Global
Material: steel
Load Capacity: 1-300t
Power supply: Battery
Color: Customized
Operation Type: Hand Pendant+remote Control
After-sales Service Provided: Field maintenance and repair service
Basis informatie
Certificering: CE, ISO, SGS
Betalen & Verzenden Algemene voorwaarden
Packaging Details: The transfer trolleys will be packed by the tarp, and the parts will be packed by the high quality wooded case.
Supply Ability: 600 Set/Sets per Year Customized manufacturing capacity can meet your 1 to 300 Tons
Productomschrijving
Product Description

Battery powered electric transfer trolley for transportation cart

BEFANBY designed and manufactured the battery powered transfer car and provide innovative handling solution with more than 16 years'experience.the transfer car can be used in industry plant, port, workshop, production line and so on to transport ladle, coil, mold, steel products, workpiece  and so on.All the solution are designed as per customers true demand.  Battery powered electric transfer trolley for transportation cart
Battery powered electric transfer trolley for transportation cart
The battery powered transfer cart is a good choice if meeting the following features:
1.The running distance is not limited for the battery powered transfer trolley
2.Low using frequency(The spare battery can be provided if higher using frequency)
3.Despite of turning or going straight, the transfer trolley can realize
4.Despite of running on indoor or outdoor, high temperarture or explosive environment, ferry or cross rail, the transfer trolley can realize.
5.Dimensions,capacity, loading platform superstructure, speed and many others special funcition can be customized as per client request

Get more application details from Battery powered electric transfer trolley for transportation cart

Advantage
1.   High level automation(self propelled/steerable)
2.   The largest capacity can reach to 500t
3.   Safe parts are installed in the transfer trolley(warning light, e-stop, buffer...)
4.   Robust sturdy car frame
5.   AC/DC electric engine , diesel engine or pneumatic engine
6.   Excellent gear reducer and motor with high quality, assemblied together perfectly
7.   Remote control&hand pendant control make the opration more convenient.
8.   The speed can be adjusted
9.   Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment
Product Parameter
Modle
KPX-10T
KPX-30T
KPX-50T
KPX-80T
KPX-100T
KPX-150T
Table Size (m)
3.6*2.0*0.5
4.5*2.2*0.6
5.5*2.5*0.65
6.0*2.6*0.8
6.5*2.8*0.9
10*3.0*1.2
Power
Maintenance Free Battery
Rail inner Gauge
1435mm
1435mm
1435mm
1800mm
2000mm
2000mm
Wheel Dia.
350mm
400mm
500mm
600mm
600mm
600mm
Running Speed
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
Motor Power
1.6kw
3.5kw
5kw
8kw
10kw
15kw
Battery Capacity
180Ah
250Ah
330Ah
400Ah
440Ah
600Ah
Battery Volatge
48v
48v
48v
72v
72v
72v
Max Wheel Load
42.6Kn
110.4Kn
174Kn
278.4Kn
343.8Kn
265.2Kn
Reference weight
4.2t
6.8t
8t
12.8t
14.6t
26.8t
Recommend Rail
P24
P38
P43
P50
QU100
QU100

Remark: the technical parameter of the transfer car only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time.Battery powered electric transfer trolley for transportation cart

Packing & Delivery
Packing
Size
Actual measurement shall prevail
weight
The actual weight shall prevail



Details
The transfer trolley normal package is plastic cloth(Size: L*W*H). If export to european countries or container is too tigher,we will packed it according to customers special request
Delivery
Size
Actual measurement shall prevail
weight
The actual weight shall prevail



Details
The transfer trolley are shipped to proper container as per the cargo size, LCL, 20', 40', FR container and so on.
And we have the long term cooperative forwarder, and the proper transportation solution and economic price will be provide and make you at ease with rich experience.
Our Company

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling cart ,metal sheet rail wagons as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Give us a call today at 86-373 5289556 or click here for more information for a free quote on any size transfer trolley.
If you can think it then we can manufacture it; transfer cars for any application.
Battery powered electric transfer trolley for transportation cart  electric transfer trolley for transportation cart
Contact us to learn more about how we can help you achieve your ergonomic and safety goals.
Battery powered electric transfer trolley for transportation cart  electric transfer trolley for transportation cart
